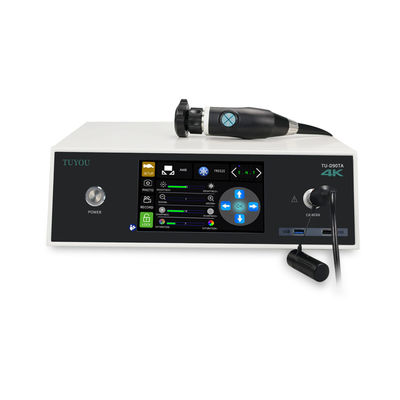

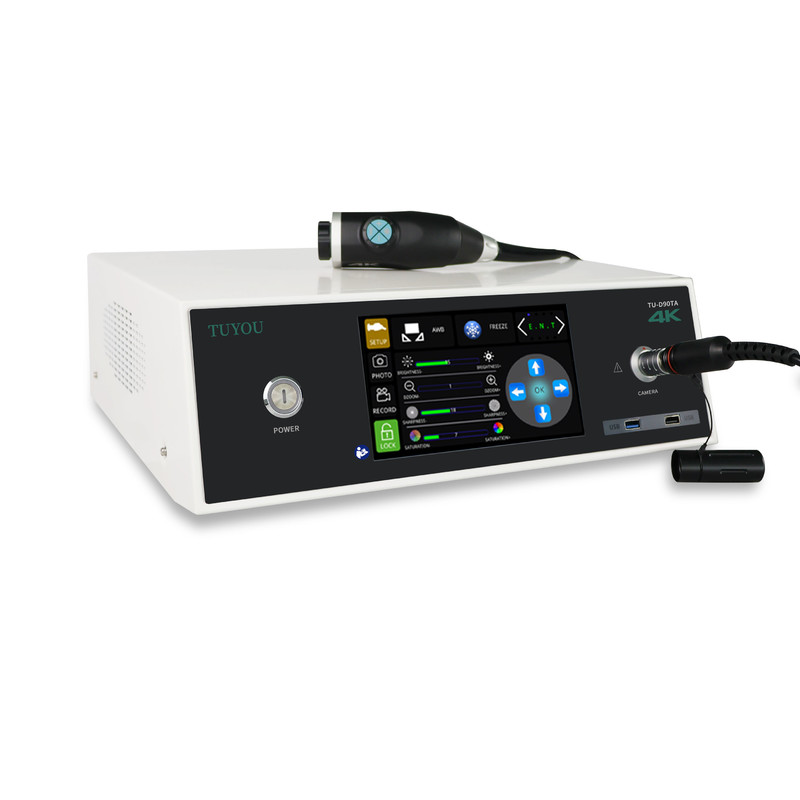

TU-D90TB FHD Endoscope Camera with 7-inch Display HDMI/SDI/CVBS/DVI/VGA Output and One-Touch Freeze for Medical Imaging

TU-D90TB FHD Endoscope Camera with 7-inch Display HDMI/SDI/CVBS/DVI/VGA Output and One-Touch Freeze for Medical Imaging

Marchio:	TUYOU
Numero di modello:	TU-D90TA 4K
MOQ:	1 insieme
Tempo di consegna:	giorni 3-15work
Condizioni di pagamento:	T/T, Unione Occidentale

Informazioni dettagliate

Descrizione di prodotto

Informazioni dettagliate

Luogo di origine:

Certificazione:

CE FDA ISO13485

Tipo:

Endoscopio

Classificazione dello strumento:

Classe I.

Marca:

TUYOU

Numero di modello:

TU-D90TB 1080P

Proprietà:

Sistema di immagini per medico

Nome del prodotto:

Camera medica dell'endoscopio

Sensore di immagine:

1/2,8 "Sony CMOS

Parole chiave:

Attrezzatura medica

Risoluzione:

Imballaggi particolari:

Dimensione della scatola: 48,5*48*26 "Peso: 11 kg One PC

Capacità di alimentazione:

2000 al mese

Evidenziare:

7-inch display Endoscope Camera

HDMI/SDI/CVBS/DVI/VGA Medical Endoscope Camera

One-touch freeze HD Endoscope Camera

Descrizione di prodotto

TU-D90TB1080P endoscope camera HDMI/SDI/CVBS/DVI/VGA for fiber optic arthroscopic cystoscopic

Advanced Endoscopic Imaging System

Our advanced endoscopic imaging system integrates optical, electronic, and precision mechanical technologies, seamlessly compatible with various endoscopes including otoscopes, sinusoscopes, laryngoscopes, laparoscopes, arthroscopes, and cystoscopes. Supporting clinical scenarios from ENT diagnosis to urological and gynecological interventions, this system delivers full HD and 4K resolution images with exceptional clarity, color accuracy, and detail reproduction for precise diagnosis and minimally invasive surgery. Designed for portability and intelligent operation, select models feature anti-interference capabilities to enhance surgical efficiency and patient safety.

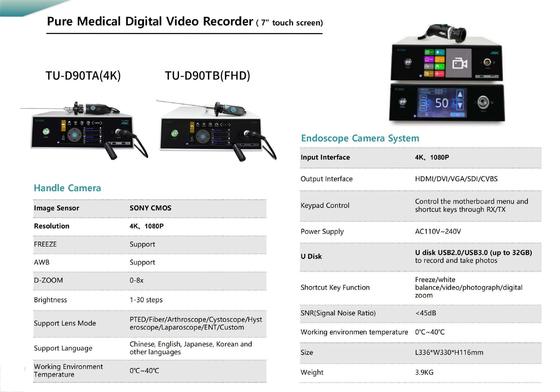

Product Specifications

System Parameters
Item Number	TU-D90TB 1080P
Input Interface	1080P

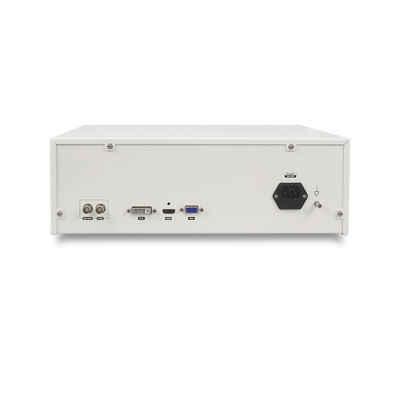

Output Interface	HDMI/SDI/CVBS/DVI/VGA
Keyboard Control	Via RX/TX control board menu and shortcuts
Power	AC 110V~240V
USB Port	USB2.0/USB3.0 (max 32GB support) for recording/photos
Shortcut Functions	Freeze/White Balance/Video/Photo/Digital Zoom
SNR	<45dB
Operating Environment	-10℃~60℃
Product Dimensions	336mm(L) × 330mm(W) × 116mm(H)
Net Weight	3.9kg
Camera Parameters
Image Sensor	1/1.8-inch CMOS
Effective Pixels	3864(H) × 2192(V) ≈8.46 million pixels
Resolution	SDI 4K
D-ZOOM	0-8x
Brightness	1-30 steps
Lens Modes	Transforaminal Endoscope/Fiberscope/Arthroscope/Cystoscope/Hysteroscope/Laparoscope/ENT Scope
Languages	Chinese, English, Japanese, Korean and more
Operating Environment	-30℃~60℃
Power (Max)	DC12V±10% <1.7W
Operating Current	250mA±10mA

1080P Integrated ENT/Laparoscopic Medical Endoscope Camera for Doctors and Veterinarians

Product Components

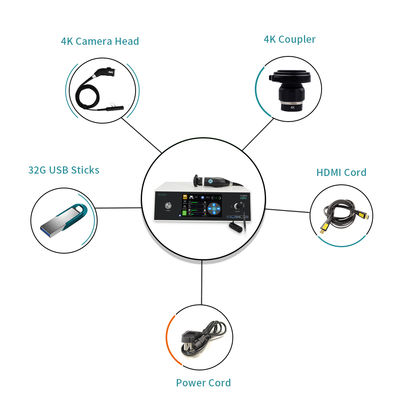

The endoscopic imaging system consists of camera control system, handheld camera, and optical adapter (recommended to use with optical endoscope).

Key Features

Built-in video recording system
7-inch display for real-time viewing
Dual USB ports for full HD video storage and external display connection
One-touch freeze and white balance
One-touch photo/video capture

Packing & Delivery

推荐产品

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,适用于耳鼻喉科,价格低廉,可分割 4 帧 0

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,适用于耳鼻喉科,价格低廉,可分割 4 帧 1

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,适用于耳鼻喉科,价格低廉,可分为 4 帧 2

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,适用于耳鼻喉科,价格低廉,可分为 4 帧 3

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,价格低廉,可分为 4 帧 4

适用于耳鼻喉科 TU-D1600T 1080P 内窥镜摄像机,价格低廉,可分为 4 帧 5

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a Chinese medical imaging equipment manufacturer. All products are produced by our workers, with 4 production lines and a dedicated R&D team.

Q: Where are you located?

A: Our address is Building 3, Nantaiyang Yunchuang Valley, Fenghuang District, Shenzhen, Guangdong, China. You're welcome to visit our factory.

Q: Do you accept OEM?

A: Yes, we provide "TUYOU" brand products. We also offer OEM services if required.

Q: What is your delivery time?

A: 7 working days after payment; samples are ready.

Q: What is the warranty?

A: 2 years free warranty. During this period, we will repair and replace faulty components free of charge.

Q: What are your payment terms?

A: We accept T/T bank transfer, Alibaba Trade Assurance, Western Union, MoneyGram, PayPal, L/C, cash, etc.
